How Autodesk Inventor Helps In Woodwork Designs

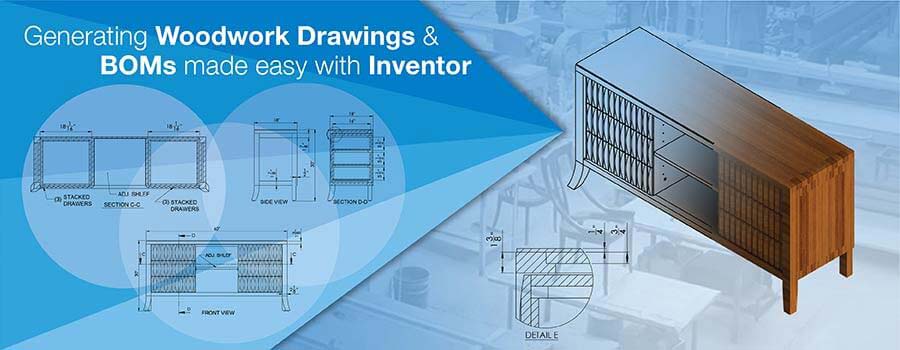

Generate Woodwork Drawings & BOMs made easy with Inventor
Autodesk Inventor has become a leading 3D modeling and design tool in the woodworking industry. Its ease of use, design efficiency, adaptability and accuracy in creating manufacturing drawings helps modern woodwork designers outperform those using conventional methods.
YouTube video

Over recent years, working patterns in the furniture industry have evolved significantly. Today, most woodworking shops are equipped with CNC manufacturing tools for cutting and shaping. But these CNC machines need precision CAD design inputs that can’t be met properly by 2D CAD drafting techniques. 2D drawings pose challenges, such as:

Inventor® is one of the leading 3D modeling software for woodworking that simplifies the design process. It offers:

Woodwork design drafting challenges faced by design engineers

Design engineers face multiple challenges that can lead to wasted time, reduced efficiency, and increased scrap. These include:

Tedious dimensioning and development of BoM

BOM Generation

Manufacturing instructions, accurate dimensioning and tolerances, footnotes etc. are critical aspects of woodworking drawings. But designers have to tactfully eliminate some to avoid too much detailing.

Frequent design changes

Suggestive Design Changes

If there is a change in one dimension of a cabinet, it should be reflected in all related parts. If the drawing fails to reflect such changes, designs are jeopardized and have to be redone.

Detailing shop drawings for seamless manufacturing

Developing shop drawings to clearly communicate part orientation, bending, holes, lumber grade etc. for minimal change orders or RFIs from the shop floor is a time-consuming process.

Autodesk Inventor® provides woodwork designers the tools to address these challenges, make the design phase easier and pave the way for streamlined production.


How Autodesk Inventor drawing and modeling benefits woodworking industry

Simplified furniture skeleton creation

Skeleton into a standard Autodesk Inventor assembly
Skeleton into a standard Autodesk Inventor assembly & continue
to use it at the assembly level

Inventor drawings for woodwork offers a set of DressUp features that has commands to efficiently and quickly create base-frame structures of furniture items based on the furniture volumes and design complexity.

To create the board body of the furniture piece, the designer needs to simply specify the volume and thickness, which also helps in creating the shelves of the cabinets. Then the designer has to specify the working surface and the furniture product’s shape, to transform it into a board.

To automatically create the cabinet, all that a designer needs to do is indicate the body of the board that has already been created and specify the offset distances clearly.

An illustrative case:

Inventor’s iLogic Configurator reduces engineering time from 4 to 5 days to a few hours.

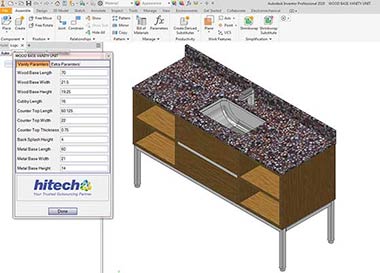

Wood Base Vanity Unit Configurator

The sales team of a leading US-based manufacturer of doors and vanities received high volumes of drawing change request from customers which was difficult to manage for the engineering team.

With the application of Autodesk’s Inventor iLogic Configurator, Hitech’s automation team reduced the engineering time from 4 to 5 days to a few hours.

The solution helped the client to customize products faster and provide more accurate quotes to customers.

Read Complete Case Study →

Joinery library and drawing standards with Woodwork for Inventor

Autodesk Inventor offers an in-built library of pre-designed, customizable joinery components and parts. Woodwork designers can easily access, drag and drop these parts and put them in their design models. It will not only save time but also ensure consistency due to all standardized parts. Additionally, there are tool like Woodwork for Inventor, that are fully integrated with Autodesk Inventor to help designers create complex designs easily.

Further, Inventor doesn’t enforce any specific drawing standard. It allows the designer to choose any drawings standard and format the project needs to adopt. This makes the design workflow flexible and more collaborative when multiple engineers working on the same designs.

Easy material assignment

With Inventor, assigning furniture materials such as solid wood, laminated board, multilayer board, rod, desktop, veneer/film, edge banding, paint can be done visually.

Construction of complex furniture from cabinets to stairs, wooden windows etc. can be done easily with Inventor as it enables selection of material types from a wide range.

Inventor can efficiently handle both the design of simple and composite parts, and the calculation of materials and parts.

Automated models and Inventor drawings development with accuracy (iLogic)

iLogic provides design automation solutions for generating necessary manufacturing documents, installation guides, 3D models and shop drawings.

It uses logical rules to automate visualization area in the drawing sheets and set the parameters for generating holes based on the grain direction, and edge bending as a part of the documentation. Additionally, since every technical drawing is generated using logical rules, the accuracy and precision of manufacturing drawings and BOMs is almost 99.99%.

Automatically Generated Documents Automatically generated documents

Data integration

Autodesk Vault Professional data
Automatically included along with the component into
the Autodesk® Vault Professional data

Autodesk Vault Professional allows integrated product data management and information integration.

Various data parameters like workpiece dimensions, material or color codes can be automatically transferred with the proper configuration of Inventor and Autodesk Vault Professional.

Systems can be set up so that any parameter generated in Inventor could be moved to the Autodesk Vault Professional data tab. For example, NC files can be generated automatically for manufacturing. This goes as an additional component property.

Moreover, Inventor can be configured to include used files in Autodesk Vault Professional data.

An illustrative case:

Institutional millwork manufacturer delivers high-quality museum furniture using Autodesk Vault

Display Cabinets Drawings & Rendering

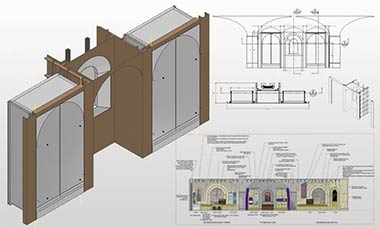

The furniture manufacturer was looking to develop manufacturing drawings for wooden cabinets. To preserve the essence of historical architectural designs of the museum, they needed precision drawings

The millwork team at Hitech CADD Service developed detailed cabinet shop drawings for them using Autodesk Invertor. The plans were shared with the manufacturer using Autodesk Vault to eliminate design data loss and faster TAT.

Read Complete Case Study →

Supports adaptation

Inventor is adaptable to the woodworking industry needs and is user friendly. It offers self-updating for various features which is missing in AutoCAD®.

Inventor’s adaptability and user-friendliness make it stand out. It offers self-updating features, surpassing software like AutoCAD®, which can pose challenges in updating parts when geometry is manipulated. The delete and repeat technique used by woodwork designers gained popularity with the powers offered by Inventor.

Unlike AutoCAD, Inventor offers self-updating for various features and doesn’t require layers, a command line, or a UCSISON, making it a top choice for woodworkers.

Inventor for Woodworking: An Essential Tool

Regardless of furniture design complexity, Inventor for woodwork ensures quick and accurate delivery. Additionally, paired with iLogic it overcomes challenges in customizing existing designs.

You can not only add your own components to the Inventor Library but also download 3D models of components and parts from your supplier’s website.

For professional carpenters and woodwork designers, Autodesk Inventor has become an indispensable tool. It guarantees enhanced design efficiency, data integration, and unparalleled adaptability, positioning it as a leader in the woodworking industry.
